Emphasis of objects or architectural elements.

Projectors

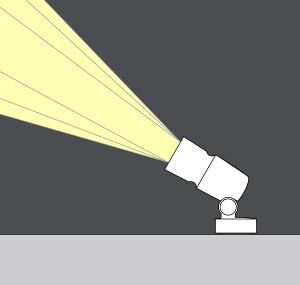

Very narrow to wide beam, rotationally symmetrical light distribution for accent lighting.

Light source
2W - 21.6W
215lm - 2598lm
Projectors

Projectors

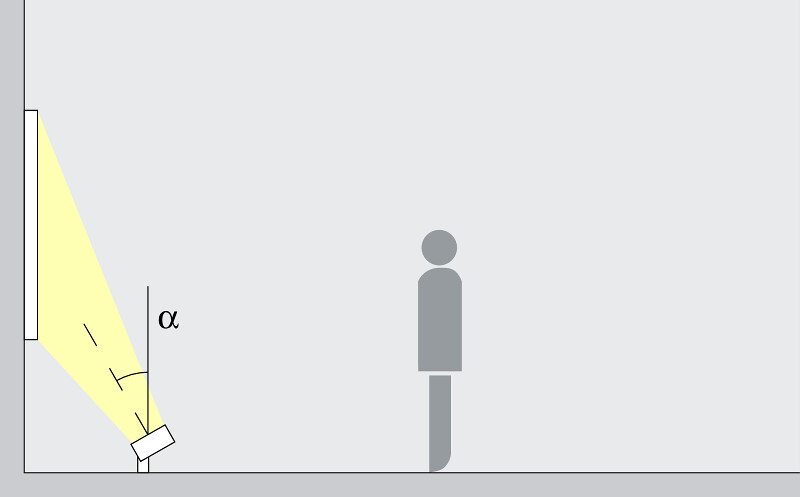

An angle of inclination (α) of approx. 30° is suitable for accent lighting with Beamer projectors. This emphasizes the three-dimensionality of architectural details, sculptures and trees without distorting the spatial impression with excessive shadowing.

Arrangement: α = 30°

Emphasis of objects or architectural elements.

Lighting technology
Luminaire arrangement

Zoom projectors

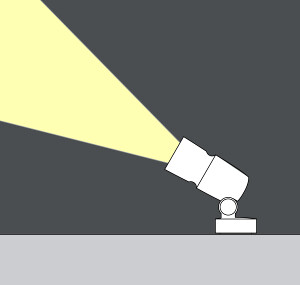

Manually adjustable round or oval light distribution for accenting to floodlighting.

Light source
8.1W - 21.6W
862lm - 2598lm
Zoom projectors

Zoom projectors

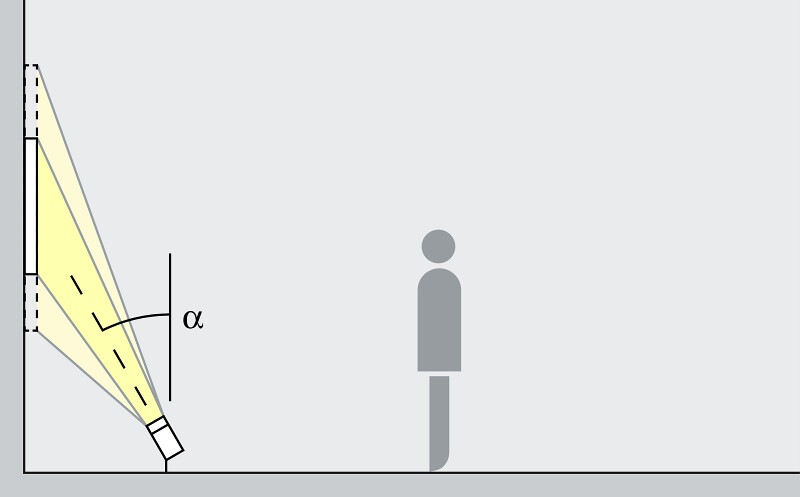

Zoom projectors feature a continuously adjustable beam angle. With the spot to wide flood zoom range, smaller objects can be accentuated effectively at an inclination angle (α) of approximately 30°. Oval zoom is suitable for elongated objects. The object is modeled without distorting the effect as a result of excessive shadowing. It also prevents shadows cast by the observer.

Arrangement: α = 30°

Wide-beam illumination of larger objects or spatial zones.

Lighting technology
Luminaire arrangement

Floodlights

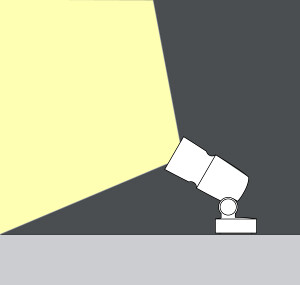

Very wide rotationally symmetrical or axially symmetrical light distribution for floodlighting.

Light source
8.1W - 21.6W
862lm - 2598lm
Floodlights

Floodlights

Beamer projectors ensure uniform floodlighting of wall surfaces or trees. The ideal angle of tilt (α) for this is approximately 30°.

Arrangement: α = 30°

Vertical illuminance for brightening the surroundings and segmenting the exterior landscape.

Lighting technology
Luminaire arrangement

Lens wallwashers

Asymmetrical light distribution for highly uniform wallwashing.

Light source
8.1W - 21.6W
862lm - 2598lm
Lens wallwashers

Lens wallwashers

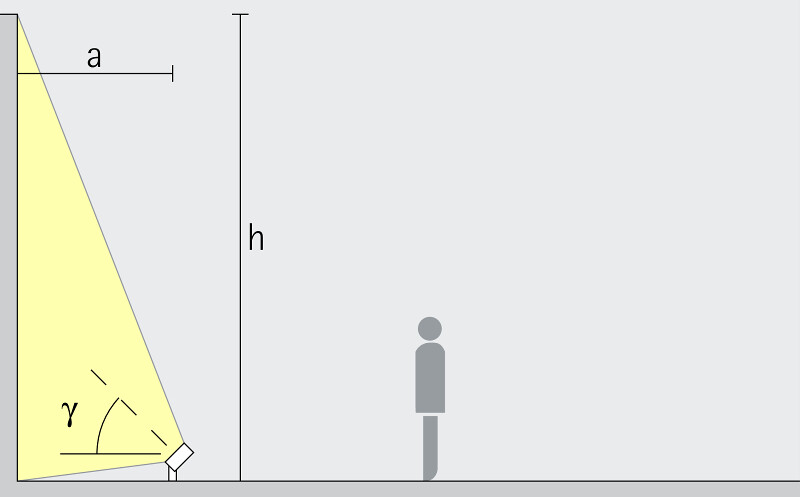

Outdoors, uniform vertical lighting defines spatial borders. The distance to the wall (a) of Beamer wallwashers should be around one third of the wall height (h) for this purpose. This results in an angle of tilt (γ) of around 55°.

Arrangement: a = 1/3 x h or γ = 55°

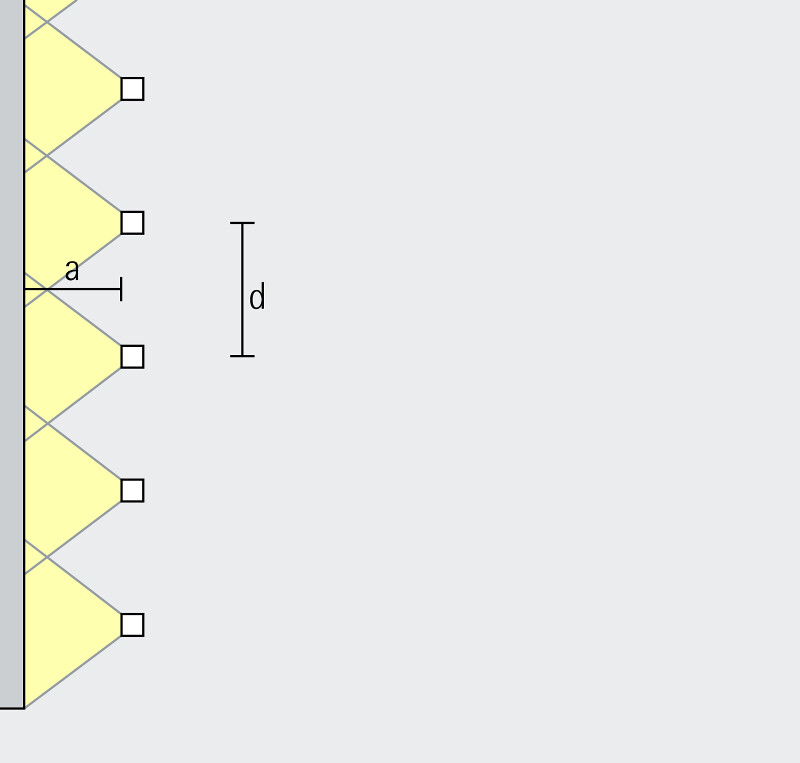

For good longitudinal uniformity, the luminaire spacing (d) of Beamer wallwashers may be up to 1.2 times the distance to the wall (a).

Arrangement: d ≤ 1.2 x a

Optimal wall distances and luminaire spacing values for individual products are specified in the wallwasher tables at www.erco.com.
