Grazing light wallwashers

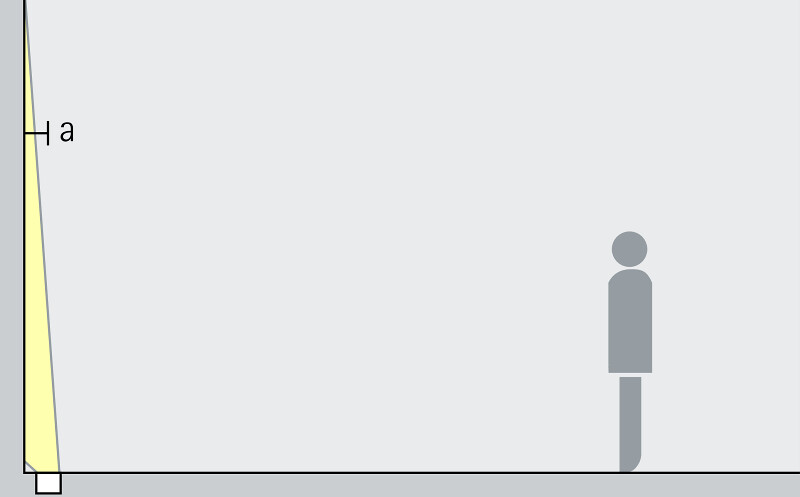

To allow surface textures to come to the foreground of attention, the distance (a) of Site grazing light wallwashers from the wall should be approx. 30cm.

Arrangement: a = 30cm

Application: surfaces with a three-dimensional texture, e.g. natural stone walls.

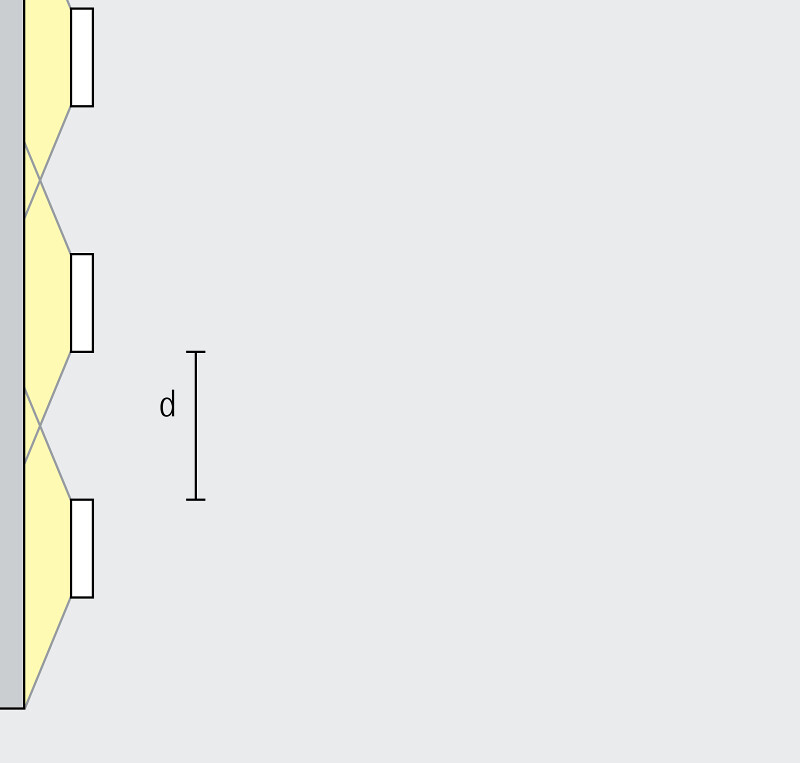

For good longitudinal uniformity, the spacing (d) of two Site grazing light wallwashers may be up to 1m.

Arrangement: d ≤ 1m

The optimal wall offset and luminaire spacing for each product are indicated in the wallwasher tables in the catalogue and the product data sheets.
